Folding Gooseneck Lowbed Trailers
Front Loading Folding Gooseneck Trailer for transport excavator and construction equipment, large machinery transportation.
We can make the 3/4/6 axles lowboy trailers, with the capacity of 60/80/100/120 ton.
Folding Gooseneck Lowbed Trailer, also named Folding Gooseneck Lowboy, Foldable Folding Gooseneck Trailer Low Loader.
It is a kind of front-loading trailer, different from the RGN trailer. The main features is that the gooseneck can lie flat as front loading platform, but no need to dismantle the gooseneck from the trailer body, and it can also be folded as a gooseneck for haulage. It is widely used for transporting construction machines no matter they are with tires of crawlers or not.
Folding Gooseneck Lowboy Trailer Factory Price

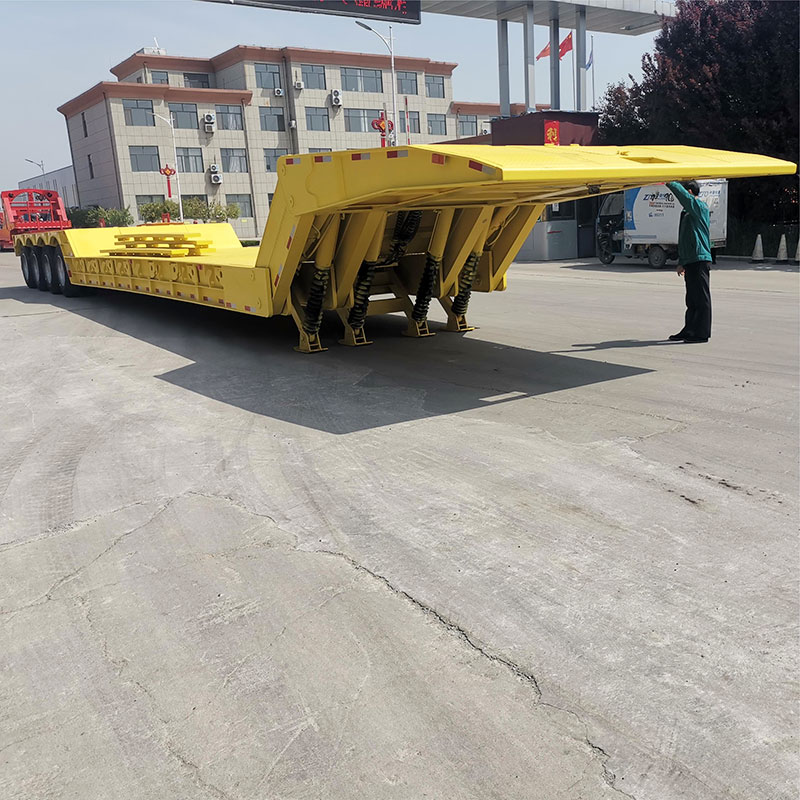

The folding gooseneck design allows the front section of the 100 ton lowboy trailer to flip down or fold out of the way, creating a ramp for easier access to load and unload heavy equipment, machinery, and oversized loads.
The ease of loading and unloading offered by folding gooseneck lowboy trailers can lead to cost savings by reducing the need for additional equipment or services to assist in the loading and unloading process.
4 Axle 100 Ton Front Loading Folding Gooseneck Trailer for Sale
Specification of Folding Gooseneck Trailer | |
Dimension | 18000mm x 3800mm x 1800mm |
| Working platform | 14000*3800MM |
| Loading capacity | 100 TONS.4 AXLES,16TONS. |
| Gooseneck | hydraulic folding gooseneck Side hook for chain or belt Checkered plate with 20 mm squre bar on ramps |
| Twist locks | 6 units for 40/45 ft container |
| Folding gooseneck trailer for sale axle | 4 Axle |
| Tire | 16 units, 8.25R20/10.00R20/11.00R20/12R22.5 |
| Suspension | Mechanical suspension |
| Spring leaf | 120(W)mmx16(Thickness)mmx10 layers |
| Kingpin | JOST brand 2.0 or 3.5inch(bolted or welded type |
| Tare weight | About 9.5-19T |
| Hydraulic cylinder | 12KW diesel engine with hydraulic station |
| Folding neck lowboy for sale ABS | Optional |
| Folding neck lowboy trailers for sale valve | WABCO valve |
| Folding gooseneck trailer for sale voltage | 24V |
| Painting | Polyurethane paint, with long service lift, and avoid the vehicle getting rust |

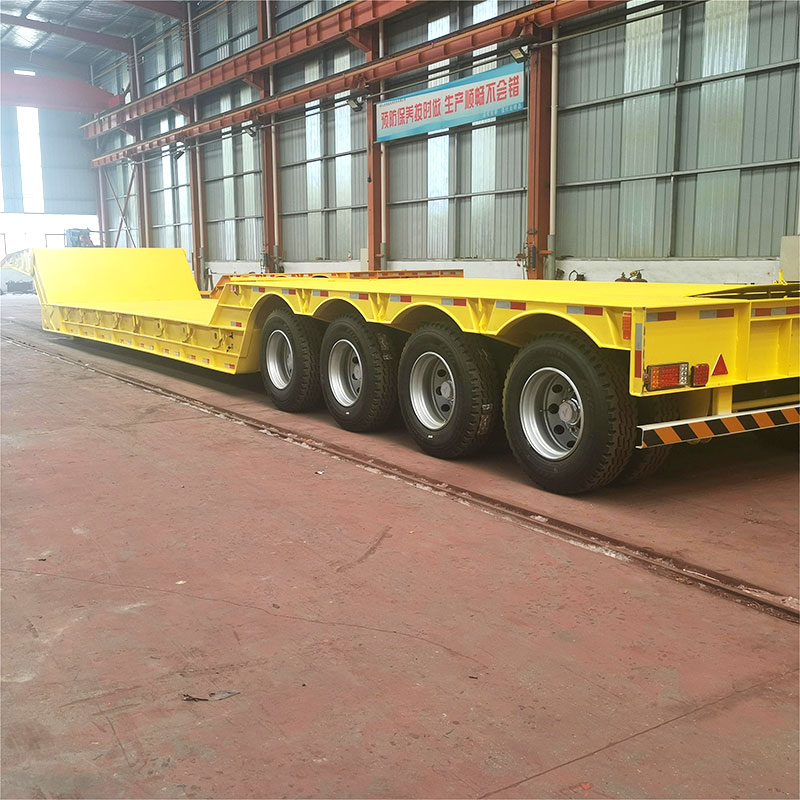

4 Axle 100 Ton Lowboy Trailer For Sale
Foldable Folding Gooseneck Trailer Low Loader
