Flatbed Trailer with Front Wall

Jinma Automobile is a professional Flatbed Trailer with Front Wall manufacturer and supplier in China. If you are interested in tailgate trailer products, please get in touch with us. Whether you are in the construction industry or any other industry that requires reliable and safe transportation solutions, Jinma is your first choice.


Get a quote for Flatbed Trailer now!

Product Details

Flatbed Trailer with Front Wall is an upgraded version of the standard flatbed semi-trailer, enhanced explicitly with a front-mounted mudguard wall for improved functionality. It combines protective features with structural durability and is designed as a versatile transport solution for Zambia's market.

The key innovation lies in Flatbed Trailer with Front Walls for sale in Zambia front protective wall serves dual purposes as both a cargo shield and mudguard, effectively preventing material spillage and road debris splash. This optimized design enables efficient transportation of construction materials (bricks, pipes, timber) on worksites and safe hauling of agricultural produce/farming equipment. At the same time, it still has the function of transporting containers with a traditional flatbed semi-trailer.

The reinforced structure maintains the standard trailer's loading capacity while adding critical front-end protection, making it adaptable to diverse operational requirements across multiple industries.

Flatbed Trailer with Front Wall

Flatbed Trailer with Front Wall for sale in Zambia

The Flatbed Trailer with Front Wall is equipped with cargo securing devices, convenient tie-down points and load securing devices, which can quickly secure various cargoes. It is especially suitable for the transportation of fragile or large cargoes, reducing the risk of cargo shifting due to bumps.

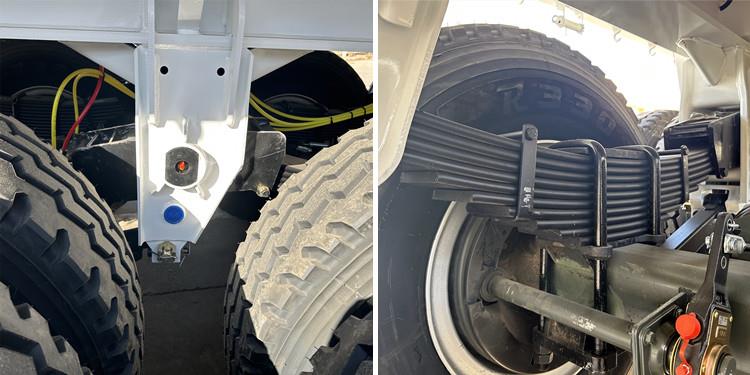

Flatbed Semi Trailer with Front Board

Flatbed Semi Trailer with Front Board

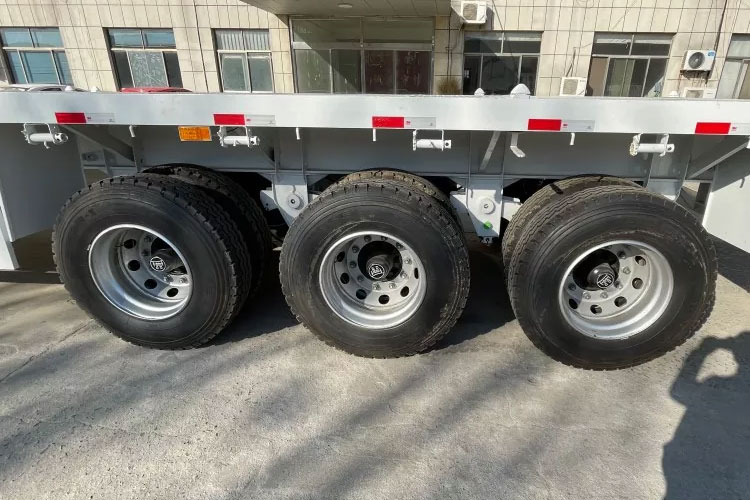

Flatbed Semi Trailer

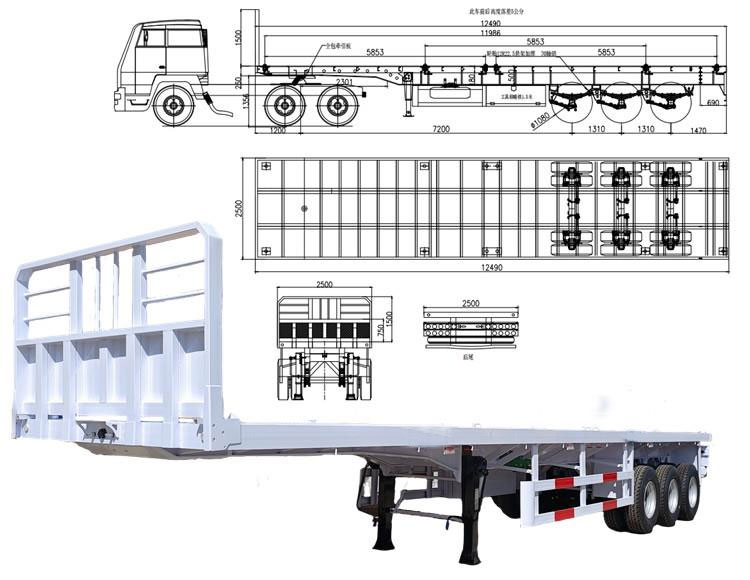

Flatbed Trailer With Front Wall Parameter (Specification)


Dimension (mm)12500mm*2500mm*1550mm or customized size
Tare Weight6.5-7 Ton
Payload60T
Main BeamQ 345B high quality Carbon Steel
Beam height 500 mm, Upper plate 14 mm, lower plate 16 mm: Middle plate 8 mm
Platform3/4mm pattern board
Twist Locks12 pcs container lock
Axles3 pcs, 13T16T, BPW/FUWA /DERUN
King Pin2 or 3.5 inch
 Leaf Spring90*13-10layer, 8 sets
Suspension systemMechanical Suspension / air suspension / Bogie suspension (Germany Type or America Type)
Tire12R22.5, 12.00R20,315/80R22.5,16 pcs
Landing GearStandard 28Ton, JOST brand
Brake systemWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; Two 40L air tanks, ABS Optional
